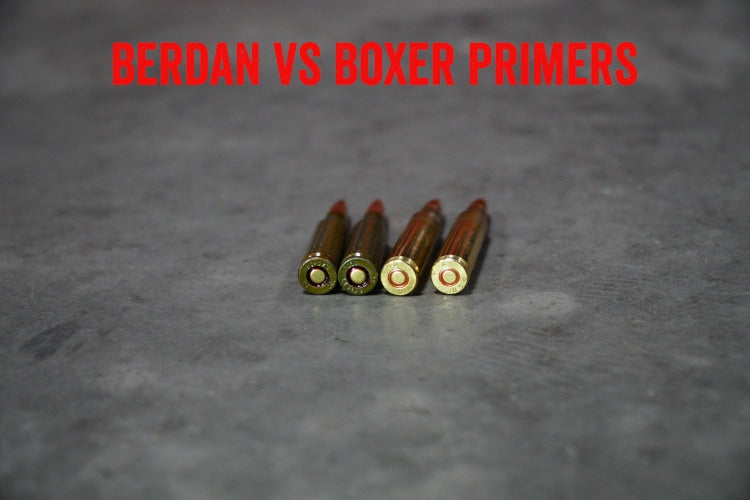

Berdan Primers vs. Boxer Primers: Understanding the Differences
Hey all, we here at True Shot Academy are going to talk about primer types today. When it comes to
ammunition, two primer systems dominate the market: Berdan and Boxer. These ignition systems serve the same purpose but differ significantly in design and application. Today we will delve into the differences between these primer types, explore their advantages and disadvantages, and cover other important considerations regarding both systems. Without further ado, let's examine Berdan and Boxer primers.
What Are Primers?
Primers serve as the ignition component in modern
ammunition. These small metal cups contain a pressure-sensitive compound that, when struck by a firing pin, creates a small explosion. This explosion produces hot gases and incandescent particles that travel through flash holes to ignite the main powder charge in the cartridge. Primers effectively translate mechanical energy from the firing pin into the thermal energy needed to initiate the powder combustion process.
Modern centerfire ammunition utilizes either Berdan or Boxer primer systems. While both systems accomplish the same basic function, they feature distinct design differences that affect everything from manufacturing processes to reloading capabilities. These differences play a significant role in ammunition selection for various shooting applications.
What Are Berdan Primers?
Berdan primers take their name from their inventor, American Colonel Hiram Berdan, who patented the design in 1866. Despite American origins, Berdan primers gained greatest acceptance in European and Asian
ammunition manufacturing. The Berdan system features a primer pocket with an integral anvil formed as a raised portion in the center of the primer pocket within the cartridge case itself.
Berdan-primed cases typically contain two or more flash holes positioned around this central anvil. These flash holes allow the primer's incandescent particles to reach the main powder charge. The primer itself consists of a simple metal cup containing the primer compound without an internal anvil. When the firing pin strikes the primer cup, the primer compound compresses against the fixed anvil in the cartridge case, causing ignition.
What Are Boxer Primers?
Boxer primers derive their name from their inventor, Edward Boxer, a British Colonel who developed the system in 1866, the same year as Berdan's design. Despite European origins, Boxer primers gained widest acceptance in American
ammunition manufacturing. The Boxer system features a primer pocket with a single flash hole centered in the base of the cartridge case.
Boxer primers contain an internal anvil as part of the primer assembly itself. This anvil typically consists of a small three-legged metal piece positioned between the primer cup and the primer compound. When the firing pin strikes the primer cup, the primer compound compresses against this internal anvil, causing ignition. The resulting hot gases and particles travel through the single central flash hole to ignite the main powder charge.
Purchase Ammo
Key Differences Between Berdan and Boxer Primers
The most fundamental difference between these primer systems lies in anvil location. Berdan primers utilize an anvil formed as part of the cartridge case, while Boxer primers contain the anvil within the primer itself. This distinction creates several important functional differences between the systems.
Flash hole configuration represents another key difference. Berdan-primed cases feature multiple flash holes positioned around the central anvil, while Boxer-primed cases utilize a single central flash hole. This difference significantly impacts the reloading process, as Berdan cases require specialized tools to remove spent primers.
Production costs also differ between the systems. Berdan-primed
ammunition typically costs less to manufacture because the primers lack internal anvils and the cartridge cases require no machining for a central flash hole. Boxer primers cost slightly more to produce due to the more complex primer assembly containing the internal anvil.
Advantages of Berdan Primers
Berdan primers offer several advantages that explain their continued use in global
ammunition production. Manufacturing efficiency stands as a primary benefit. Berdan-primed cases typically cost less to produce than their Boxer counterparts because the primers contain fewer components and the multiple flash holes can be easier to form during the case manufacturing process.
Reliability represents another advantage of the Berdan system. The multiple flash holes ensure ignition even if one hole becomes partially obstructed. This redundancy can provide more consistent ignition under adverse conditions. Additionally, the integral anvil in the case tends to withstand multiple firings with less deformation than the separate anvils in Boxer primers.
Water resistance provides another benefit of Berdan-primed ammunition. The multiple small flash holes create less direct exposure between the primer and the main powder charge, potentially offering better protection against moisture intrusion. Some military ammunition continues to use Berdan primers for this reason, particularly in regions with challenging environmental conditions.
Advantages of Boxer Primers
Boxer primers offer significant advantages that have made them the standard in American
ammunition manufacturing and the preferred choice for reloaders worldwide. Reloading compatibility represents the primary benefit. The single central flash hole allows spent primers to be pushed out from inside the case using a simple pin or rod, making primer removal straightforward with basic reloading equipment.
Primer availability constitutes another advantage. Boxer primers are produced in greater quantities and varieties in the United States, making them readily accessible to both ammunition manufacturers and reloaders. Common sizes include small pistol, large pistol, small rifle, and large rifle primers, each available in standard and magnum versions.
Consistency also favors Boxer primers. The self-contained anvil design ensures uniform ignition characteristics across production batches. Additionally, the single flash hole provides a more direct ignition path to the powder charge, potentially offering more uniform powder ignition.
Reloading Considerations
Reloading capability represents the most significant practical difference between these primer systems for many shooters. Boxer-primed cases can be reloaded relatively easily with standard reloading equipment. The spent primer ejects through the single central flash hole when pressed with a decapping pin, and new primers install with a simple priming tool.
Berdan-primed cases present greater challenges for reloading. The lack of a central flash hole means standard decapping pins cannot push out spent primers. Specialized tools and techniques exist for reloading Berdan cases, including hydraulic methods that pull the primer out from the outside and specialized Berdan decapping tools. However, these methods prove more time-consuming and less practical for volume reloading.
Primer availability also affects reloading considerations. Boxer primers remain widely available in various sizes and types throughout the United States. Berdan primers prove more difficult to source in North America, though they remain common in European markets. This availability difference further reinforces the preference for Boxer-primed
ammunition among American reloaders.
Which Ammunition Uses Berdan Primers?
Berdan primers appear most commonly in
ammunition manufactured outside the United States, particularly from Eastern European, Russian, and Asian producers. Military surplus ammunition from these regions almost exclusively utilizes Berdan primers. Common calibers found with Berdan primers include
7.62x39,
7.62x54r,
5.45x39, and various European pistol calibers.
Several commercial ammunition manufacturers continue to use Berdan primers in their production, particularly for ammunition lines where reloading considerations hold less importance. Berdan primers appear most frequently in steel-cased ammunition marketed as economical practice or range ammunition. Additionally, some hunting ammunition from European manufacturers continues to utilize Berdan primers.
Notably, many corrosive ammunition offerings, both commercial and military surplus in nature, utilize Berdan primers. Berdan primers which are corrosive are corrosive due to the presence of potassium chlorate. Upon ignition, the potassium chlorate in a corrosive primer disperses corrosive salts into the bore and action of the firearm. This is not to say that all Berdan primers are corrosive by any means. In fact, there are many noncorrosive Berdan-primed loadings on the market.
Which Ammunition Uses Boxer Primers?
Boxer primers dominate American
ammunition manufacturing across virtually all centerfire calibers. Nearly all ammunition produced by major US manufacturers like Federal, Winchester, Remington, and Hornady utilizes Boxer primers. This includes everything from common handgun calibers like
9mm,
.45 ACP, and
.38 Special to rifle calibers such as
.223,
.308 Win, and
.30-06 Springfield.
Premium defensive and hunting ammunition almost exclusively features Boxer primers, partly because manufacturers recognize that many users of these ammunition types also reload. Match-grade ammunition also predominantly uses Boxer primers, as consistency and potential for reloading hold particular importance for precision shooters.
Some manufacturers outside the United States have shifted toward Boxer primers for export ammunition destined for the American market. This trend acknowledges American shooters' preference for reloadable brass cases with Boxer primers. Even some traditionally Berdan-primed ammunition lines now offer Boxer-primed versions specifically for export.
Purchase Ammo
How to Identify Berdan vs. Boxer Primed Ammunition
Visual inspection provides the most reliable method for identifying primer type. Examining the primer pocket of an empty case reveals the difference clearly. Boxer-primed cases feature a single central flash hole, while Berdan-primed cases show two or more small flash holes arranged around a central anvil. This inspection requires an empty case, as the primer covers these features in loaded
ammunition.
Ammunition packaging sometimes indicates primer type, particularly for brands that offer both Berdan and Boxer versions of the same ammunition. However, many manufacturers do not explicitly state primer type on packaging, assuming consumers understand the standard for their market region.
Country of origin can provide a general but not definitive indication. American-made ammunition almost always uses Boxer primers, while ammunition from Russia, Eastern Europe, and parts of Asia more commonly utilizes Berdan primers. However, exceptions exist as global manufacturers increasingly produce ammunition with regional preferences in mind.
Berdan vs. Boxer Primer Reliability
Both primer systems demonstrate excellent reliability when properly manufactured. Modern production methods ensure consistent performance from both Berdan and Boxer primers across a wide range of environmental conditions. Neither system holds a significant inherent reliability advantage over the other in typical shooting applications.
Military and defense applications sometimes favor Berdan primers for specific scenarios due to their potential moisture resistance advantage. The multiple smaller flash holes potentially offer better protection against water intrusion compared to the single larger hole in Boxer-primed cases. This characteristic explains the continued use of Berdan primers in some military
ammunition, particularly for applications where extreme environmental conditions may occur.
Storage longevity appears comparable between properly manufactured examples of both primer types. Modern primer sealing techniques protect both Berdan and Boxer primers from environmental contamination during extended storage. Ammunition stored in proper conditions maintains reliability for decades regardless of primer type.
Conclusion
Berdan and Boxer primers represent two engineering approaches to the same fundamental task of igniting the powder charge in centerfire
ammunition. While functionally similar, these systems differ significantly in design and practical considerations. Boxer primers dominate the American market due to their reloading advantages, while Berdan primers maintain popularity in other regions due to manufacturing efficiencies and specific performance characteristics.
For recreational shooters focused primarily on factory ammunition, primer type holds limited practical significance beyond its effect on ammunition price. However, for reloaders, the distinction proves crucial, with Boxer-primed cases offering dramatically simpler reloading processes. Both systems provide reliable ignition when properly manufactured and used within their intended applications.
All in all, understanding the differences between Berdan and Boxer primers helps shooters make informed ammunition choices based on their specific needs. Whether seeking economical range ammunition or planning to reload, primer type represents an important consideration. We here at True Shot Ammo carry a wide range of ammunition featuring both primer types in addition to our extensive inventory of
